The 2026 Ford Ranger tows up to 7,500 lbs when properly configured with either the 2.3L or 2.7L EcoBoost engine. That matches its predecessor’s rating, but the available Pro Trailer Backup Assist and integrated trailer brake controller make the system more capable in practice. This page breaks down how towing works on each trim, and you can check available Ranger inventory at Canton Ford below.
The 7,500 lb towing rating on the 2026 Ford Ranger is the headline number, but the full picture involves a layered set of systems working together. Ford achieves that rating on both the 2.3L EcoBoost I-4 (270 hp, 310 lb-ft torque) and the available 2.7L EcoBoost V6 (315 hp, 400 lb-ft torque), paired with the 10-speed SelectShift automatic transmission in every configuration. The Raptor, running the 3.0L EcoBoost twin-turbo V6 (405 hp, 430 lb-ft torque), is rated lower at 5,510 lbs conventional towing because its suspension geometry and tire sizing are tuned for off-road performance rather than towing optimization.
Supporting that tow rating is a fully boxed, high-strength steel frame standard across all trims. That frame geometry underpins every other towing system on the truck. Trailer Sway Control is also standard on every trim, giving drivers a baseline of stability that activates automatically when the truck detects unwanted trailer movement.

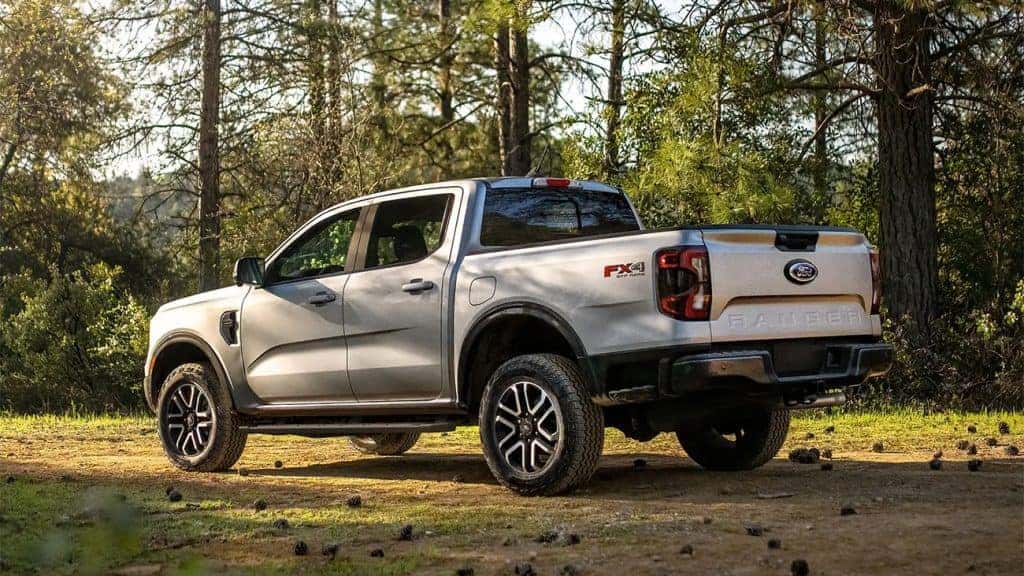

The 10-speed SelectShift automatic transmission is the mechanical backbone of the Ranger’s towing capability. Its wide gear ratio spread lets the engine stay in its torque peak longer during acceleration from a stop with a loaded trailer, and the dedicated Tow/Haul mode adjusts shift points to reduce gear hunting on grades.
Trailer Sway Control reads steering input, yaw rate, and individual wheel speeds. When it detects the trailer pushing the rear of the truck off-line, it applies selective braking to individual wheels to bring the combination back into alignment. This happens without driver input.

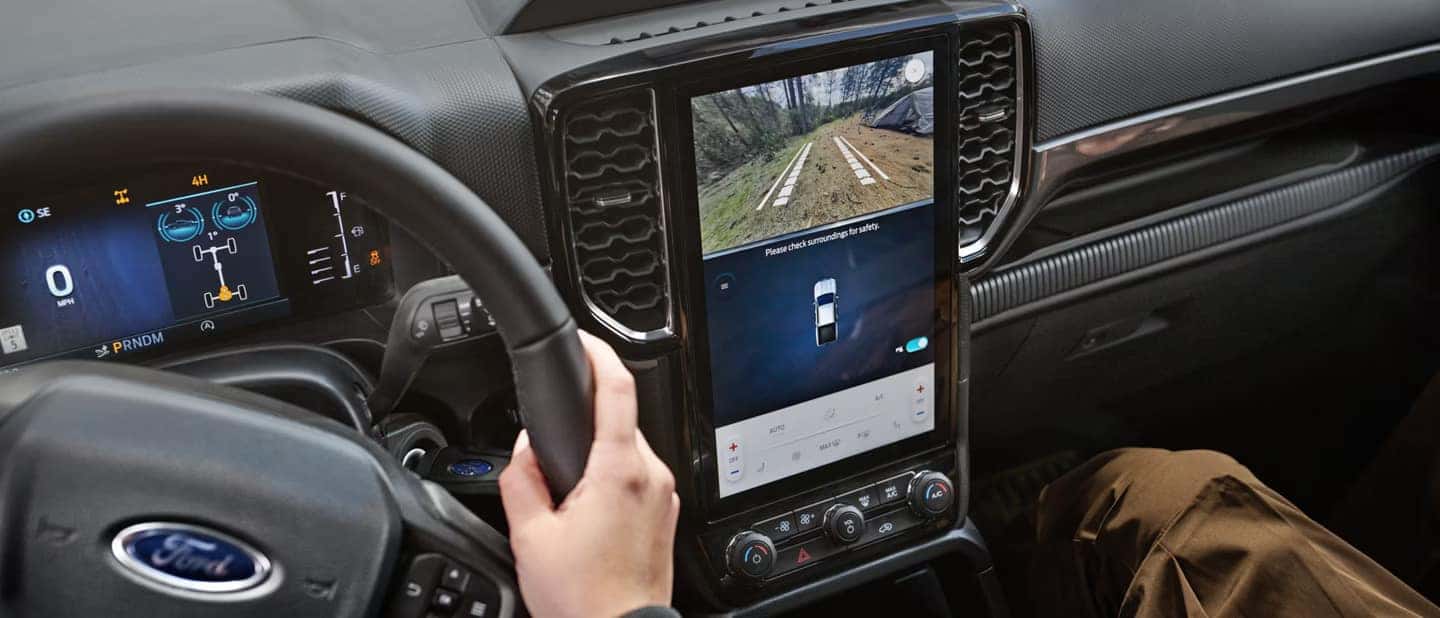

The available Integrated Trailer Brake Controller (ITBC) connects directly to the truck’s electronics and sends proportional braking signals to the trailer’s electric brakes. The system is calibrated through the SYNC 4A touchscreen and adjusts gain settings to match trailer weight. Without a trailer brake controller, brake loads fall entirely on the truck’s four-wheel ABS disc brakes, which is fine for lighter loads but becomes a safety factor at the top of the 7,500 lb range.

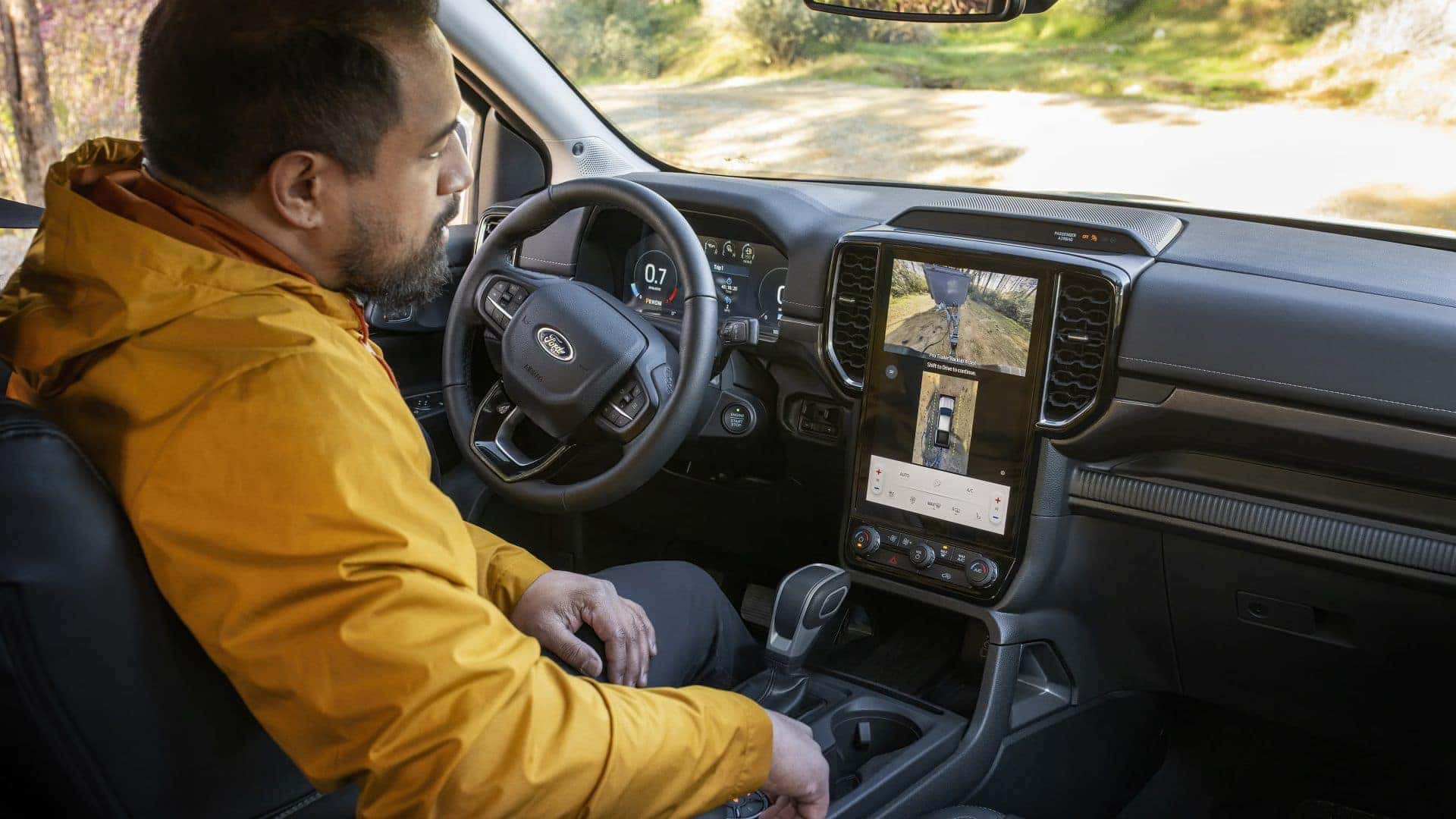

Pro Trailer Backup Assist translates steering wheel rotation into trailer steering direction, removing the counter-intuitive input reversal that makes backing a trailer difficult. The driver controls speed with the brake pedal while the system handles the steering correction. This is available on XLT, Lariat, and Raptor trims.
BLIS with Cross-Traffic Alert and Trailer Coverage extends the blind spot monitoring zone to account for trailer length. The system uses radar sensors that detect when the mirrors cannot see alongside a trailer, which is a common gap in trucks not purpose-equipped for towing.
The tow rating varies by drivetrain choice, not just trim level. Here is how the key towing equipment maps across the 2026 Ranger lineup.
The entry trim tows up to 7,500 lbs (4×2 or 4×4, both with 2.3L EcoBoost). Trailer Sway Control is standard. The Trailer Tow Package (including a 4-pin wiring harness and ball mounting provisions) is optional and required to reach the rated tow capacity. BLIS, Pro Trailer Backup Assist, the Integrated Trailer Brake Controller, and Advanced Towing Package are all optional. The XL does not include the ITBC or trailer brake provisions without the optional packages.
Adds BLIS with Trailer Coverage as standard equipment, which gives trailer-aware blind spot monitoring without an upgrade. The XLT also gains standard Adaptive Cruise Control, which maintains set speed with a trailer attached. Pro Trailer Backup Assist, the Integrated Trailer Brake Controller (via Trailer Tow Package), and Trail Control are available as options. The 2.7L EcoBoost V6 upgrade is available on the XLT 4×4 and brings torque up to 400 lb-ft, though the tow rating stays at 7,500 lbs due to GCWR limits.
The Lariat includes BLIS with Trailer Coverage, Adaptive Cruise Control, 360-Degree Camera System, and the Advanced Towing Package as standard or available content. The 360-degree camera is a practical towing aid, giving a top-down view of the hitch area to simplify trailer hookup. The Integrated Trailer Brake Controller is available through the Trailer Tow Package. The Lariat is the first trim where the Technology Package stacks with towing equipment, giving you the 12-inch cluster display alongside trailer-specific tools.
The Raptor’s 3.0L EcoBoost produces 405 hp and 430 lb-ft of torque, but its tow rating drops to 5,510 lbs. The Raptor’s Fox Live Valve 2.5-inch coil-over shocks, Watts-link rear suspension with coil springs, and wider track (67.3-inch vs. 63.8-inch on other trims) are designed for high-speed off-road use. The taller 10.7-inch ground clearance and LT285/70R17 all-terrain tires, while excellent off-road, reduce the GCWR relevant to trailer towing. The Raptor does include the Integrated Trailer Brake Controller and Advanced Towing Package as standard, along with Pro Trailer Backup Assist.
A Ranger rated at 7,500 lbs handles the loads most East Texas and North Texas owners pull regularly. That covers a loaded 24-foot bumper-pull stock trailer under typical load, a mid-size pontoon boat with trailer, a loaded car hauler with a small vehicle, or two personal watercraft on a tandem trailer with room to spare.
The payload rating adds necessary context. The 2.3L EcoBoost 4×2 carries up to 1,767 lbs of payload, the 4×4 version carries up to 1,763 lbs, and the 2.7L EcoBoost 4×4 handles up to 1,513 lbs. When a fifth-wheel or gooseneck setup puts tongue weight in the bed, that payload number matters as much as the tow rating. The Ranger is rated for conventional hitch towing only, not fifth-wheel or gooseneck, so those setups fall outside its certified rating.
Trail Control, available on XLT and Lariat (and standard on Raptor), acts as a low-speed cruise control for off-pavement situations. This benefits owners who tow to a boat ramp or trail access point and need controlled descent on a sloped surface while unhitching.
The FordPass app connection lets owners check vehicle health status remotely, which is useful when a trailer has been hitched and the owner wants to confirm the brake controller connection or trailer lighting circuit before departing.
The 7,500 lb rating positions the 2026 Ranger competitively against other mid-size trucks. Its closest competitors in the segment carry similar ratings but differ in how their towing assist features are distributed across trims.
The Ranger’s BLIS with specific Trailer Coverage is standard on XLT and above, which is an equipment advantage over some rivals that package that feature higher in the trim stack. Pro Trailer Backup Assist, while not unique to the Ranger, is an available option starting at the XLT trim, giving it broader accessibility than some competitor implementations that reserve it for higher trims.
The Raptor variant’s tow rating drop to 5,510 lbs is a known trade-off in the performance truck segment. Competitors with off-road-oriented performance trims face the same physics: wider stance, heavier suspension components, and knobby tires work against towing efficiency.
Shoppers in Canton, and across the surrounding East Texas area, can configure the right Ranger for their tow rating needs at Canton Ford. Whether the 2.3L EcoBoost with the Trailer Tow Package covers your requirements at the XL or XLT level, or you want the Lariat’s full suite of towing technology, the current inventory reflects what is on the lot now.
The 2026 Ford Ranger tows up to 7,500 lbs when properly configured with either the 2.3L EcoBoost I-4 or the available 2.7L EcoBoost V6, and equipped with the Trailer Tow Package.
No. The Raptor is rated at 5,510 lbs maximum conventional towing. Its suspension, tire sizing, and higher curb weight reduce the GCWR compared to XL, XLT, and Lariat trims.
Pro Trailer Backup Assist is available on XLT and Lariat trims, and it is standard on the Raptor. It is not available on the base XL without additional package upgrades.
The Integrated Trailer Brake Controller is available on XL, XLT, and Lariat trims through the Trailer Tow Package. It is standard on the Raptor. Reaching the full 7,500 lb tow rating requires the Trailer Tow Package on lower trims.
BLIS with Cross-Traffic Alert and Trailer Coverage extends the blind spot detection zone to account for trailer length. This is standard on XLT, Lariat, and Raptor trims and optional on the XL.
The 2.3L EcoBoost 4×2 version carries up to 1,767 lbs. The 4×4 version with the same engine carries up to 1,763 lbs. The 2.7L EcoBoost 4×4 carries up to 1,513 lbs, and the Raptor is rated at 1,373 lbs.
No. The 2026 Ranger is rated for conventional hitch towing only. Gooseneck and fifth-wheel setups fall outside its certified towing configuration.
The standard engine is the 2.3L EcoBoost I-4 producing 270 hp and 310 lb-ft of torque. The 2.7L EcoBoost V6 (315 hp, 400 lb-ft) is available on XLT and Lariat 4×4 trims. The 3.0L twin-turbo EcoBoost V6 (405 hp, 430 lb-ft) is exclusive to the Raptor.
