The 2026 Ford F-150 offers six distinct engines, from a 325 hp twin-turbo V6 to a 720 hp supercharged V8. No prior F-150 generation has offered this spread of output in a single model year lineup. This page breaks down every powertrain option, what each delivers, and which trim carries it, shop inventory at Canton Ford.
No full-size truck on the market today puts six production engines on the table the way the 2026 F-150 does. The range is genuine, not trim-shuffling with marginal differences. At the entry point, the 2.7L EcoBoost twin-turbo V6 produces 325 hp and 400 lb-ft of torque, enough to handle everyday hauling and towing up to 8,400 lbs. At the top of the performance ladder, the Raptor R’s 5.2L supercharged V8 generates 720 hp and 640 lb-ft of torque, making it the most powerful engine ever fitted to an F-150.
Between those two extremes, every engine in this lineup was built for a specific type of owner. The 3.5L EcoBoost V6 is the towing champion at 13,500 lbs maximum. The 3.5L PowerBoost Full Hybrid V6 brings 420 total system horsepower with the added benefit of 2.4 kW of onboard power generation standard. The 5.0L Ti-VCT V8 is the choice for buyers who want a naturally aspirated eight-cylinder with 400 hp and 410 lb-ft of torque. The High-Output 3.5L EcoBoost V6, reserved for the Raptor, pushes 450 hp and 510 lb-ft specifically for off-road performance.
All six engines pair with a 10-speed automatic transmission. That single transmission architecture means Ford has tuned one gearbox to serve everything from a work-duty XL Regular Cab to a Baja-ready Raptor, and the ratio spread is wide enough to keep each engine in its ideal powerband whether you’re pulling a loaded trailer up a grade or cruising a Texas highway.

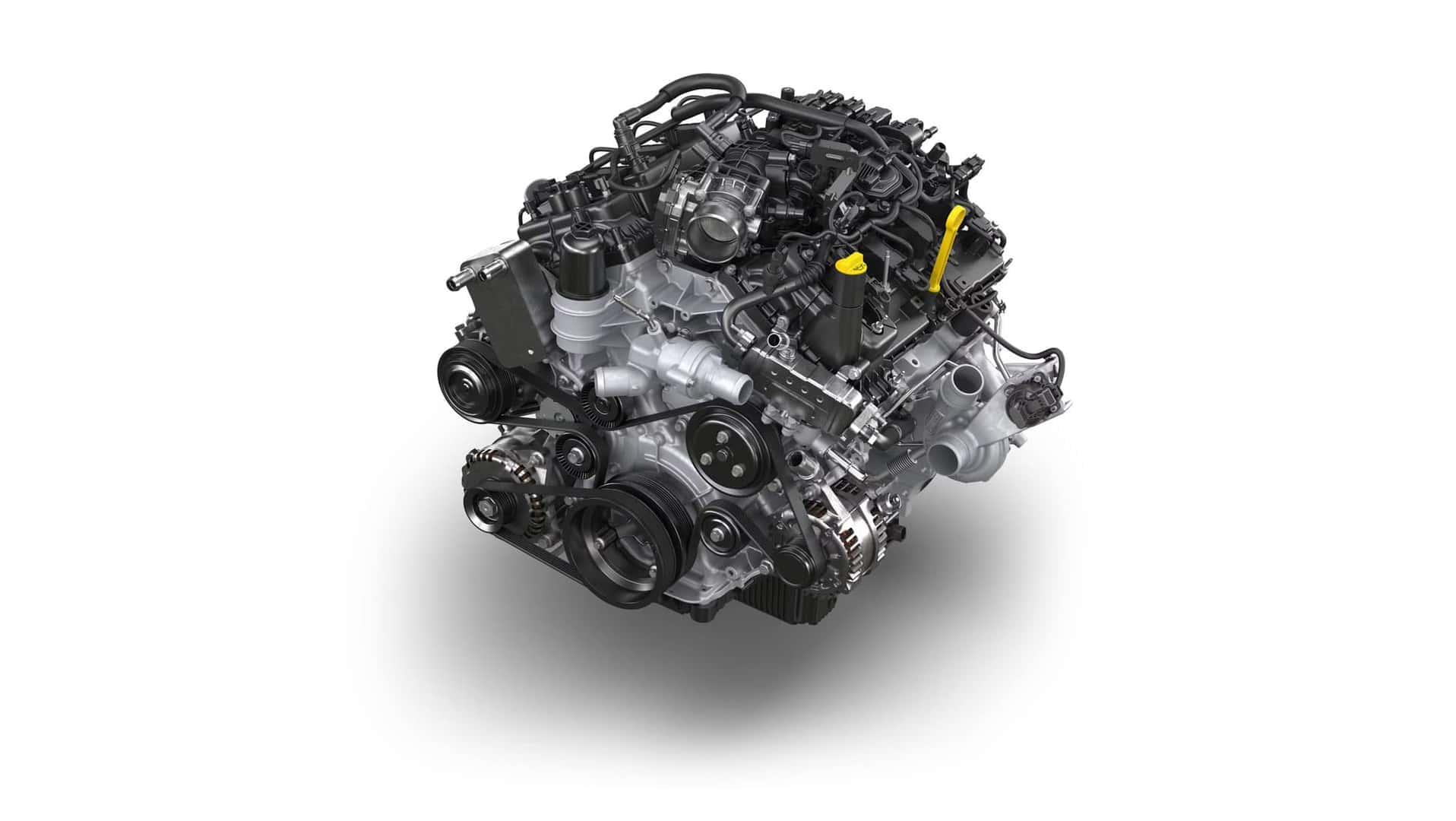

325 hp / 400 lb-ft
This is the standard engine on XL and STX trims. Twin intercooled turbochargers feed the Ford port-fuel and direct-injection (PFDI) system, which uses two injectors per cylinder for cleaner combustion and faster torque delivery. Peak torque arrives at 3,000 rpm, meaning it pulls hard before most drivers expect it. Maximum towing with this engine reaches 8,400 lbs, and maximum payload hits 1,775 lbs. For buyers who want a capable daily driver without the weight penalty of larger engines, this is the efficient starting point.

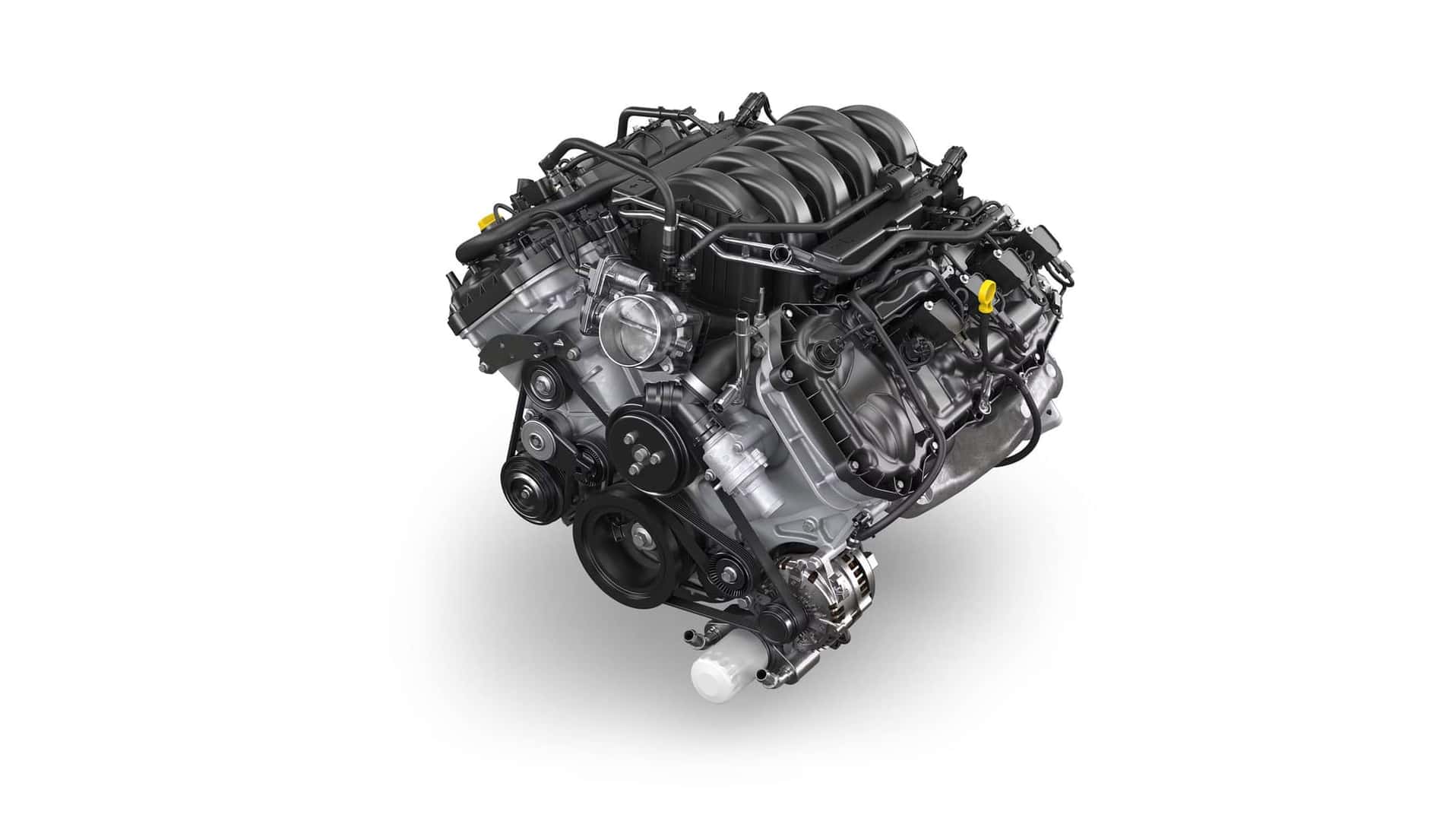

400 hp / 410 lb-ft
The naturally aspirated V8 uses twin independent variable camshaft timing (Ti-VCT) alongside the PFDI system. It revs to 6,000 rpm and makes 400 hp without a turbocharger in the equation. Maximum towing climbs to 12,800 lbs, and payload reaches 2,235 lbs when properly configured. The 2026 STX Lobo Package is built around this engine, pairing it with a 2-inch lowered rear suspension and 22-inch gloss black wheels for a street-performance character.

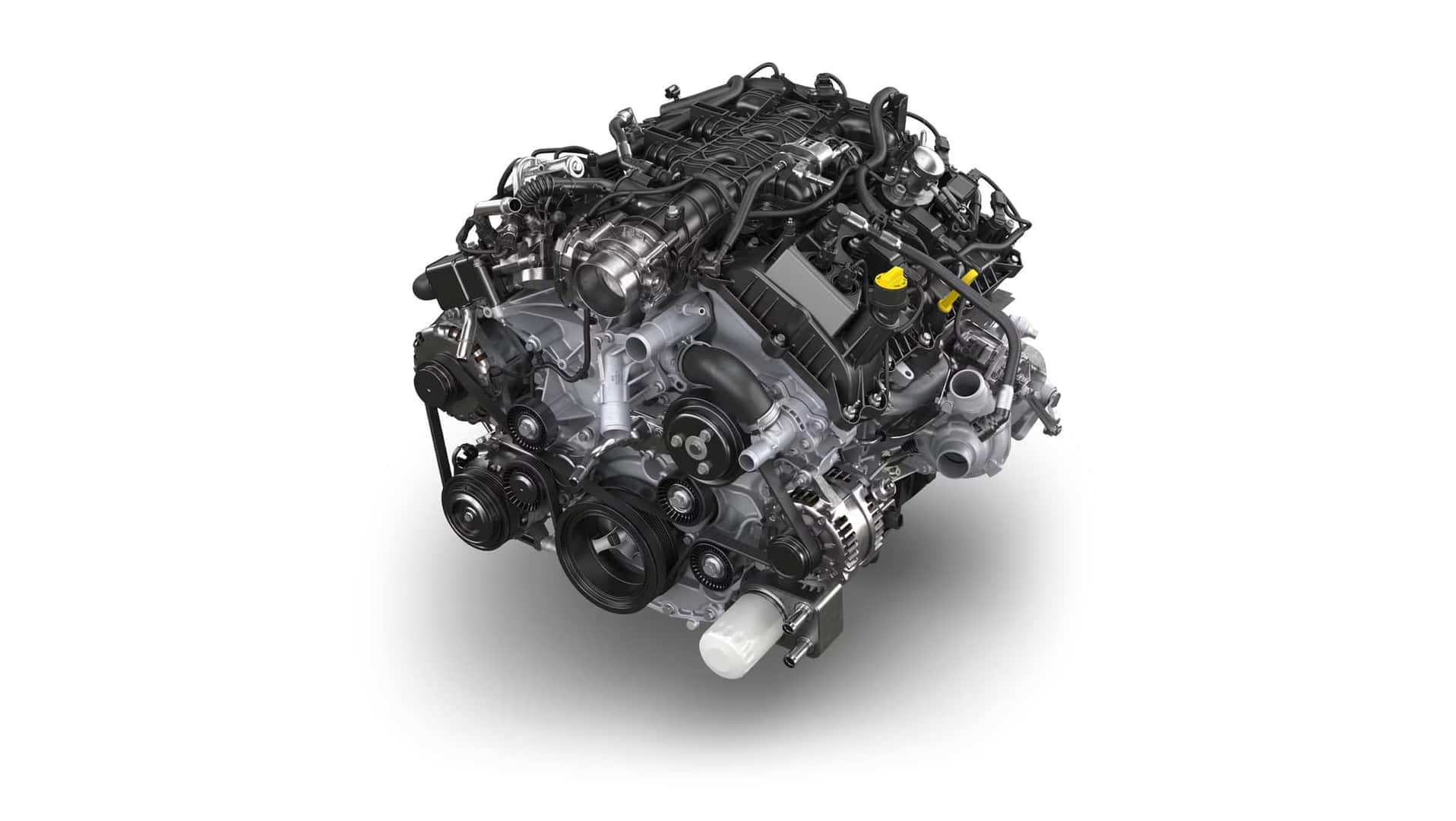

400 hp / 500 lb-ft
This is the towing benchmark engine. With 500 lb-ft of torque arriving at 3,100 rpm, it moves heavy loads with urgency. The 3.5L EcoBoost holds the 13,500-lb maximum conventional tow rating for the F-150, which is best-in-class. Payload reaches 2,440 lbs. This engine is available on Lariat, King Ranch, Platinum, and Tremor trims. Buyers who regularly pull horse trailers, equipment trailers, or heavy fifth-wheel setups will find this engine delivers the most working capability in the lineup.

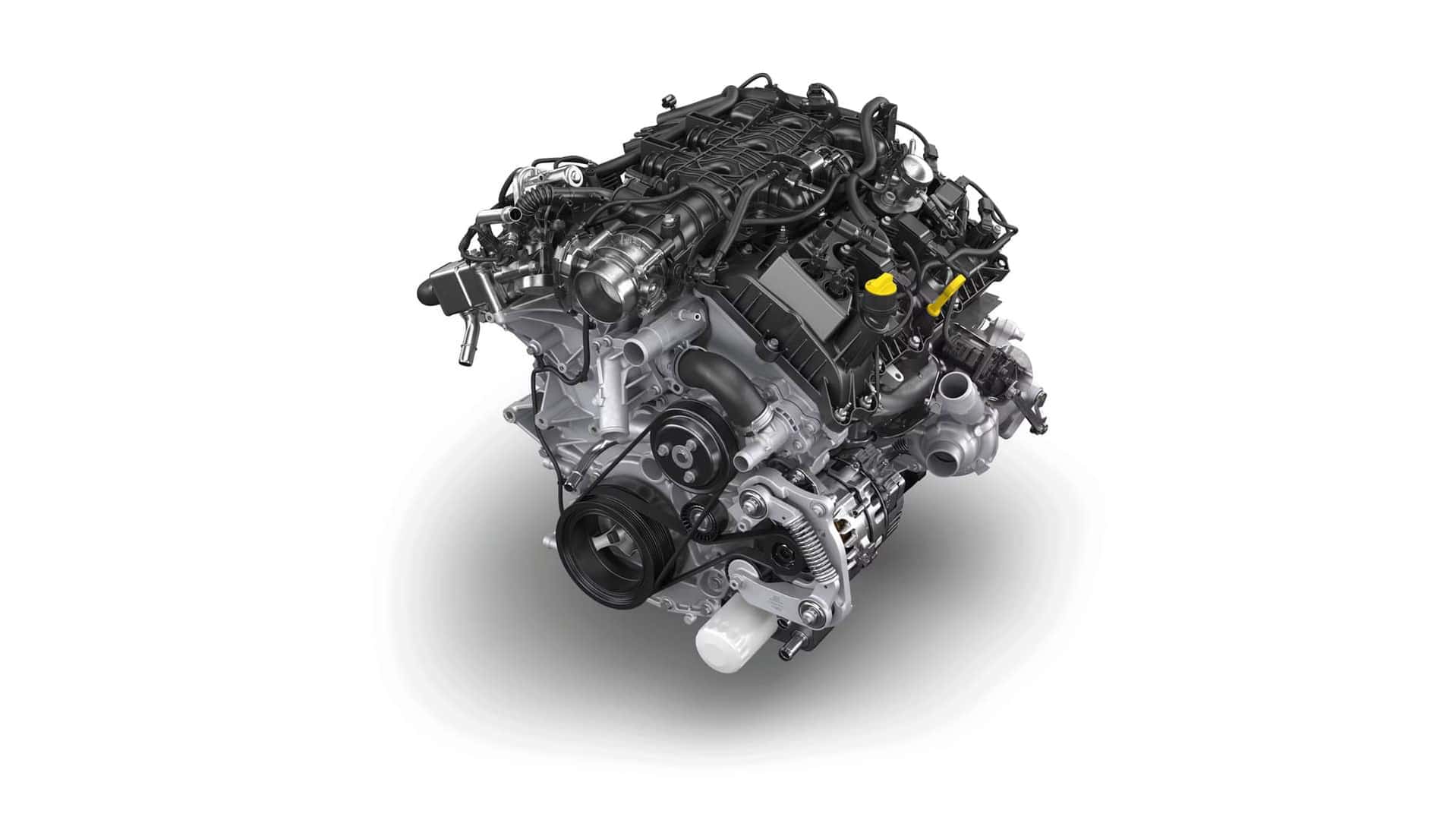

420 total system hp / 570 lb-ft total system torque
The PowerBoost pairs the 3.5L EcoBoost with an integrated electric motor and a lithium-ion battery pack. Total system output reaches 420 hp and 570 lb-ft of torque, with that torque figure available almost instantly because the electric motor fills the low-rpm range before the turbos fully spool. Maximum towing with the PowerBoost is 11,600 lbs. Maximum payload is 1,740 lbs. The hybrid-electronic 10-speed automatic transmission handles power blending automatically, no driver input required. Pro Power Onboard delivers 2.4 kW of generation standard; the Platinum Plus configuration pushes that to 7.2 kW, enough to run a miter saw, air compressor, or serve as backup power at home.

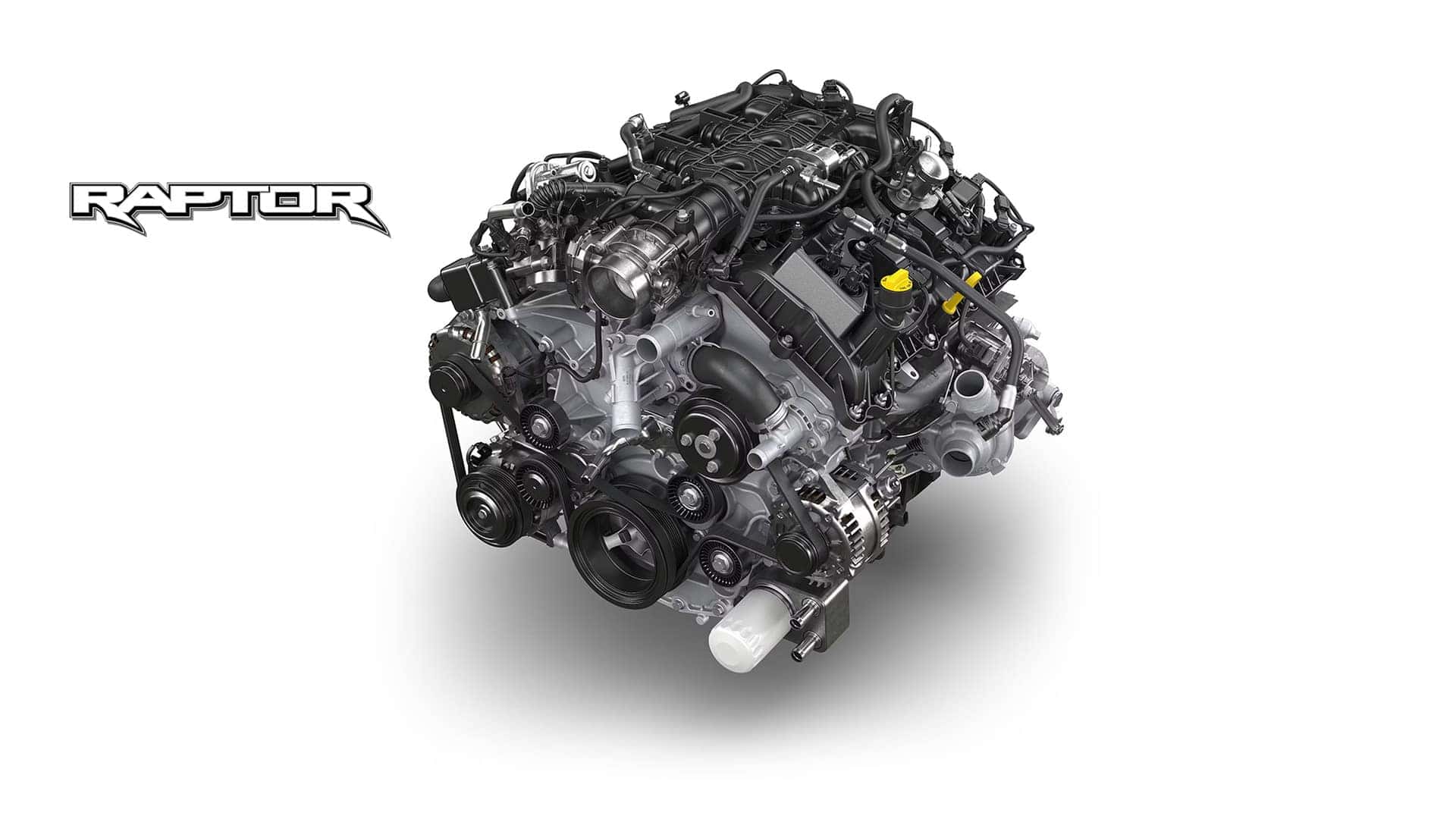

Raptor: 450 hp / 510 lb-ft
Exclusive to the F-150 Raptor, this engine uses higher-output turbochargers and requires premium unleaded fuel. It produces 450 hp and 510 lb-ft of torque tuned for sustained high-speed off-road use rather than maximum trailer weight. Raptor maximum towing is 8,200 lbs. Ground clearance on the Raptor reaches 12.0 inches, and the 74.0-inch front track gives it a stance wide enough to keep the body stable at speed over broken terrain.

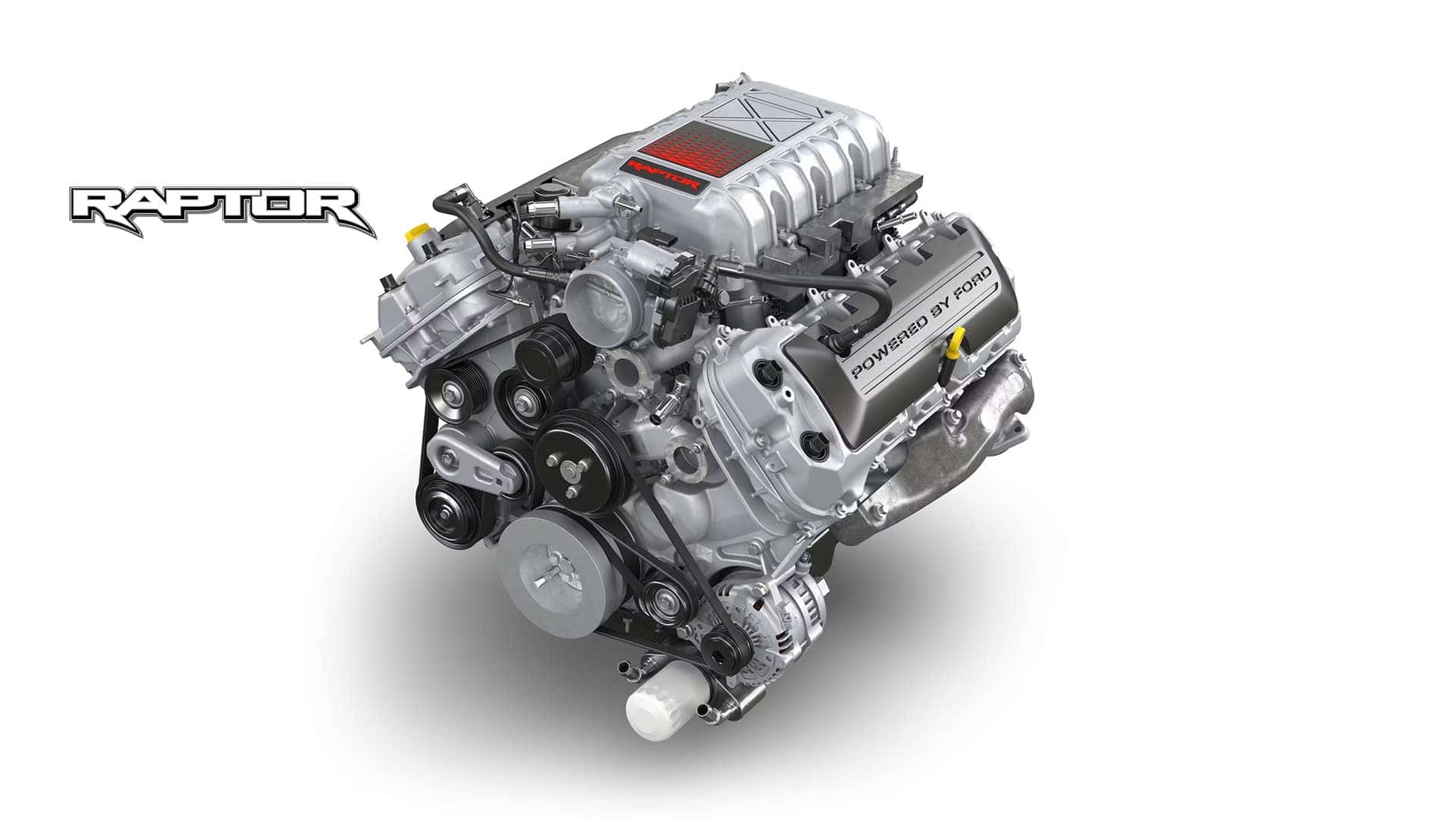

Raptor R: 720 hp / 640 lb-ft
The Raptor R’s engine is in a category of its own among production trucks. A roots-type supercharger feeds the 5.2L V8, which runs an 11.5-quart oil capacity and a 9.5:1 compression ratio on premium fuel. Output is 720 hp at 6,650 rpm and 640 lb-ft at 4,250 rpm. The Raptor R weighs 5,950 lbs and still manages to tow up to 8,700 lbs. This engine is not shared with any other F-150 trim.
Understanding which engine goes in which truck saves time when configuring.
The 2.7L EcoBoost V6 is standard on XL Regular Cab and STX SuperCrew 4WD. It is the entry engine for buyers who want capability without oversizing.
The 5.0L V8 is available on XL Regular Cab and is the heart of the STX Lobo Package. It suits buyers who want naturally aspirated power and flex-fuel compatibility.
The 3.5L EcoBoost V6 is available on Lariat, King Ranch, Platinum, and Tremor. The Tremor uses the 3.5L EcoBoost with a 3.73 axle ratio in its 4WD SuperCrew configuration, tuned specifically for the Tremor’s off-road suspension setup.
The 3.5L PowerBoost Full Hybrid V6 is available on XLT, Lariat, King Ranch, and Platinum trims. The hybrid-electronic 10-speed is standard on King Ranch and Platinum. It is new for 2026 that the PowerBoost is available on additional trim levels.
The High-Output 3.5L EcoBoost V6 is exclusive to the Raptor in a 4WD SuperCrew 5.5-ft box configuration.
The 5.2L Supercharged V8 is exclusive to the Raptor R.
Transmission is consistent across the lineup: every F-150 uses the 10-speed SelectShift automatic. The PowerBoost uses a hybrid-electronic variant of the same unit.
A Canton, TX truck buyer pulling cattle or equipment trailers on rural East Texas roads needs a different engine than someone commuting daily with occasional weekend hauling. That is exactly why six engines exist.
The 2.7L EcoBoost suits the buyer who needs a reliable workhorse for moderate loads. At 19 city / 25 highway / 23 combined mpg (EPA-estimated, 4×2 configuration), it is the most fuel-efficient gas engine in the lineup per the verified spec data provided.
The 3.5L EcoBoost is the right answer for anyone whose trailer regularly tests the truck. With 13,500 lbs of tow capacity and 2,440 lbs of payload, it handles a loaded gooseneck or a heavy equipment trailer without asking the engine to work at its limit.
The PowerBoost hybrid makes sense for buyers who want strong towing alongside onboard power generation. The 7.2 kW Pro Power Onboard option with the hybrid turns the truck into a mobile generator, which matters for job sites without utility access or for running essentials during a power outage.
The Raptor and Raptor R powertrains serve a different purpose entirely. Their performance is calibrated for sustained high-speed off-road use, not maximum trailer weight. If uncharted terrain is the primary goal, the High-Output 3.5L or the 720 hp supercharged 5.2L is the correct choice.
The 2026 F-150 carries the best-in-class conventional tow rating at 13,500 lbs, achieved with the 3.5L EcoBoost V6 when properly configured. No competitor currently matches 720 hp in a production off-road truck variant with a factory supercharged V8. The PowerBoost hybrid’s 7.2 kW Pro Power Onboard output is also a unique capability point, most competitors offer smaller onboard power generation or none at all on their hybrid truck variants.
The F-150 also covers the widest horsepower spread of any full-size truck in its class, from 325 hp at the base to 720 hp at the performance peak, all within a single model nameplate and a single 10-speed transmission family.
Canton Ford serves buyers across Canton and the surrounding East Texas region. Whether the 3.5L EcoBoost is the right call for heavy towing, the PowerBoost hybrid makes sense for the job site, or the Raptor R’s supercharged V8 is the goal, the current inventory covers the range. Confirm which configurations are in stock, value a trade online, or book a test drive today.
The 5.2L supercharged V8 in the F-150 Raptor R produces 720 hp and 640 lb-ft of torque, making it the most powerful engine ever put into an F-150 production truck.
The 3.5L EcoBoost V6 holds the maximum conventional tow rating at 13,500 lbs when the truck is properly configured. That figure is achieved in a SuperCrew 4×4 configuration with the Max Tow/Haul Package.
Yes. The 3.5L PowerBoost Full Hybrid V6 is available on XLT, Lariat, King Ranch, and Platinum trims. It produces 420 total system horsepower and 570 lb-ft of total system torque, and it is new for 2026 that it is available on additional trim levels beyond previous years.
The base engine is the 2.7L EcoBoost twin-turbo V6, producing 325 hp and 400 lb-ft of torque. It is standard on the XL Regular Cab and STX SuperCrew configurations.
All six engines pair with a 10-speed automatic transmission. The PowerBoost hybrid uses a hybrid-electronic variant of the same 10-speed unit; the remaining five engines use the standard 10-speed SelectShift automatic.
Standard gas-engine configurations include 2.0 kW of onboard power through bed outlets. The PowerBoost hybrid delivers 2.4 kW standard, and the 7.2 kW option is available with any hybrid powertrain and is standard on the Platinum Plus model.
The 3.5L EcoBoost V6 is available on Lariat, King Ranch, Platinum, and Tremor trims. It is also the engine powering the maximum tow configuration of the F-150.
The 5.2L supercharged V8 in the Raptor R requires premium unleaded fuel. The High-Output 3.5L EcoBoost in the standard Raptor also requires premium unleaded.
